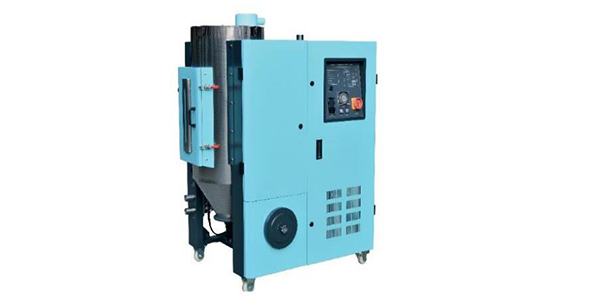

Combination of Drying, Dehumidifying and Conveying

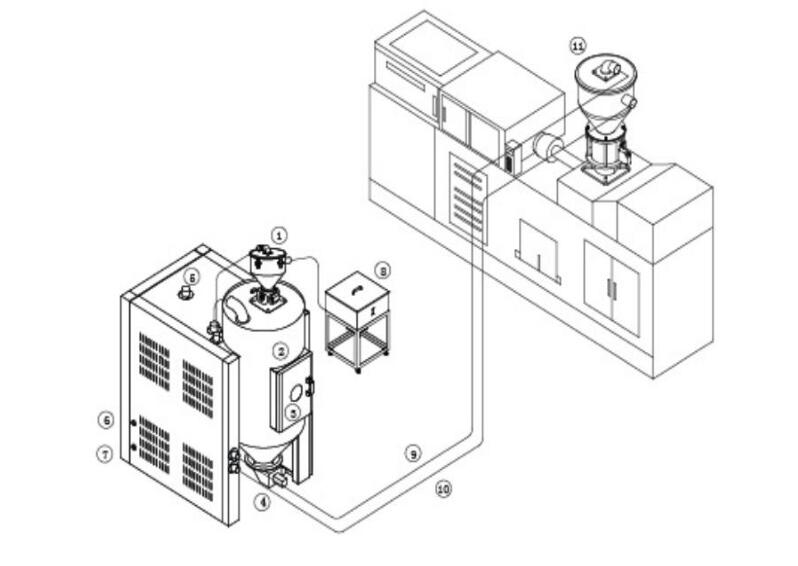

Download PDF Submit your InquiryDiagram of Installation
| Main parts | |||||||||
| 1 | Vacuum Hopper | ||||||||
| 2 | Double-layer Barrel | ||||||||
| 3 | Door for Cleaning | ||||||||
| 4 | Materials Intercepted Suction Box | ||||||||
| 5 | Humidity Outlet | ||||||||
| 6 | Cooling Water Inlet | ||||||||
| 7 | Cooling Water Outlet | ||||||||
| 8 | Material Bin | ||||||||
| 9 | Air Suction Pipe | ||||||||
| 10 | Materials Suction Pipe | ||||||||
| 11 | Electric Eye Hopper | ||||||||
Specifications
| Model | Capacity (L) | Dry blower (m3/hr) | Power of heater (kw) | Power of dry blower (kw) | Power of regenerating blower (kw) | Power of air pump (kw) | Power of regenerating heater (kw) | Pipe diameter (mm) | Dimensions LxWxH |
| SLH-40L/80 | 40 | 80 | 5 | 0.55 | 0.37 | 1.1 | 3 | 38 | 700x1200x1215 |
| SLH-80L/80 | 80 | 80 | 5 | 0.55 | 0.37 | 1.1 | 3 | 38 | 700x1200x1215 |
| SLH-120L/100 | 120 | 100 | 7 | 1.5 | 0.37 | 1.1 | 3.6 | 38 | 700x1200x1215 |
| SLH-160L/100 | 160 | 100 | 9 | 1.5 | 0.37 | 1.1 | 3.6 | 38 | 800x1350x1300 |
| SLH-230L/120 | 230 | 120 | 9 | 1.5 | 0.37 | 1.5 | 3.6 | 38 | 800x1350x1300 |
| SLH-300L/150 | 300 | 150 | 12 | 1.5 | 0.55 | 1.5 | 4 | 38 | 900x1500x1450 |
| SLH-380L/200 | 380 | 200 | 14.5 | 2.2 | 0.55 | 1.5 | 5 | 38 | 900x1500x1450 |
| SLH-460L/300 | 460 | 300 | 14.5 | 3 | 0.75 | 1.5 | 5 | 38 | 1100x1650x1550 |
| SLH-600L/400 | 600 | 400 | 18 | 4 | 0.75 | 2.2 | 7 | 38 | 1100x1650x1550 |
| SLH-800L/500 | 800 | 500 | 24 | 5.5 | 1.1 | 2.2 | 7 | 51 | 1750x1900x1900 |
| SLH-1000L/700 | 1000 | 700 | 24 | 7.5 | 1.5 | 2.2 | 9 | 51 | 1750x1900x1900 |
| SLH-1200L/700 | 1200 | 700 | 30 | 7.5 | 1.5 | 2.2 | 9 | 51 | 1800x2200x2100 |
| SLH-1300L/1000H | 1300 | 1000 | 36 | 4x2 | 2.2 | 3 | 12 | 51 | 2100x2200x2100 |
| SLH-1600L/1000H | 1600 | 1000 | 42 | 4x2 | 2.2 | 3 | 12 | 51 | 2100x2200x2100 |
| SLH-2000L/1500H | 2000 | 1500 | 42 | 5.5x2 | 2.2 | 5.5 | 12 | 51 | 2300x2400x2300 |
| SLH-2600L/1500H | 2600 | 1500 | 60 | 5.5x2 | 2.2 | 5.5 | 12 | 51 | 2300x2400x2300 |
| SLH-3300L/2000H | 3300 | 2000 | 60 | 7.5x2 | 3 | 7.5 | 18 | 51 | 2500x2600x2500 |
| SLH-4000L/2000H | 4000 | 2000 | 80 | 7.5x2 | 3 | 7.5 | 18 | 51 | 2500x2600x2700 |
