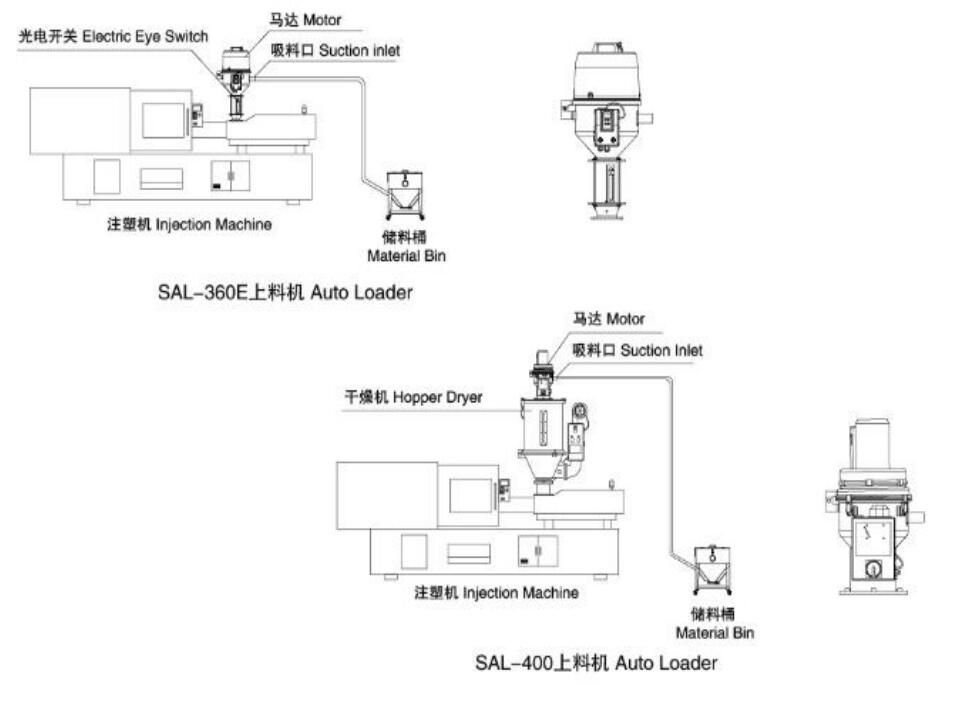

Diagram of Installation
Specifications
| Model |
Motor (kw) |
Conveying Capacity (kg/hr) |
Conveying Height (m) |
Material Hopper Volume (L) |
Conveying Tube Calibre (mm) |
External Dimensions (cm) |
Weight (kg) |
|
SAL-300C |
1.1 | 250 | 4.5 | 6 | φ38 | 360x260x500 | 10 |
|
SAL-300CE |
1.1 | 250 | 4.5 | 6 | φ38 | 360x260x600 | 10 |
|
SAL-360 |
1.1 | 300 | 4.5 | 12 | φ38 | 320x260x570 | 12 |
|
SAL-360E |
1.1 | 300 | 4.5 | 12 | φ38 | 320x320x600 | 13 |
|
SAL-390 |
1.2 | 350 | 4.5 | 12 | φ38 | 400x300x500 | 19 |
|
SAL-390E |
1.2 | 350 | 4.5 | 12 | φ38 | 400x300x500 | 19 |
|
SAL-400 |
0.75 | 350 | 4.5 | 12 | φ38 | 400x300x500 | 25 |
