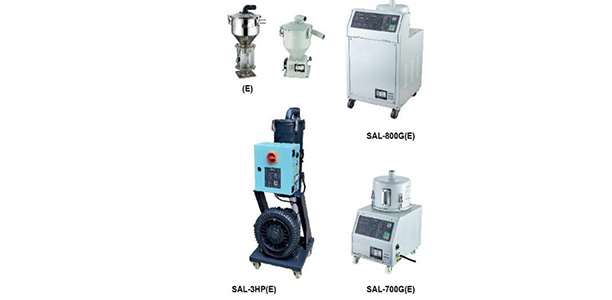

Detachable type auto loader of China plastic machinery
Download PDF Submit your InquiryDiagram of Installation
Specifications
| Model |
Motor (kw) |
Conveying Capacity (kg/hr) |
Conveying Height (m) |
Material Hopper Volume (L) |
Conveying Tube Calibre (mm) |
External Dimension (LxWxH) |
Weight (kg) |
||
| Controller | Material Hopper | Controller | Material Hopper | ||||||
| SAL-700G | 1.1 | 300 | 4.5 | 6 | φ38 | 430x380x600 | 360x260x430 | 30 | 6 |
| SAL-700GE | 1.1 | 300 | 4.5 | 6 | φ38 | 430x380x600 | 360x260x530 | 30 | 6 |
| SAL-800G1 | 1.1 | 350 | 4.5 | 6 | φ38 | 430x380x600 | 360x260x430 | 45 | 6 |
| SAL-800G1E | 1.1 | 350 | 4.5 | 6 | φ38 | 430x380x600 | 360x260x530 | 45 | 6 |
| SAL-800G2 | 1.5 | 400 | 5 | 6 | φ38 | 430x380x600 | 400x260x430 | 50 | 10 |
| SAL-800G2E | 1.5 | 400 | 5 | 6 | φ38 | 430x380x600 | 400x260x530 | 50 | 10 |
| SAL-3HP | 2.2 | 550 | 7 | 12 | φ51 | 450x380x800 | 400x260x750 | 60 | 12 |
| SAL-4HP | 3 | 600 | 8 | 12 | φ51 | 450x380x800 | 400x260x750 | 65 | 12 |
| SAL-5HP | 3.7 | 700 | 8 | 12 | φ51 | 450x380x800 | 400x350x750 | 75 | 20 |
| SAL-7.5HP | 5 | 800 | 10 | 20 | φ51 | 450x380x800 | 400x350x1000 | 90 | 25 |
| SAL-10HP | 7.5 | 1000 | 12 | 20 | φ51 | 450x380x800 | 400x350x1000 | 90 | 25 |
